REFLECTOR: XL canard

[Andy Millin]

Jack,

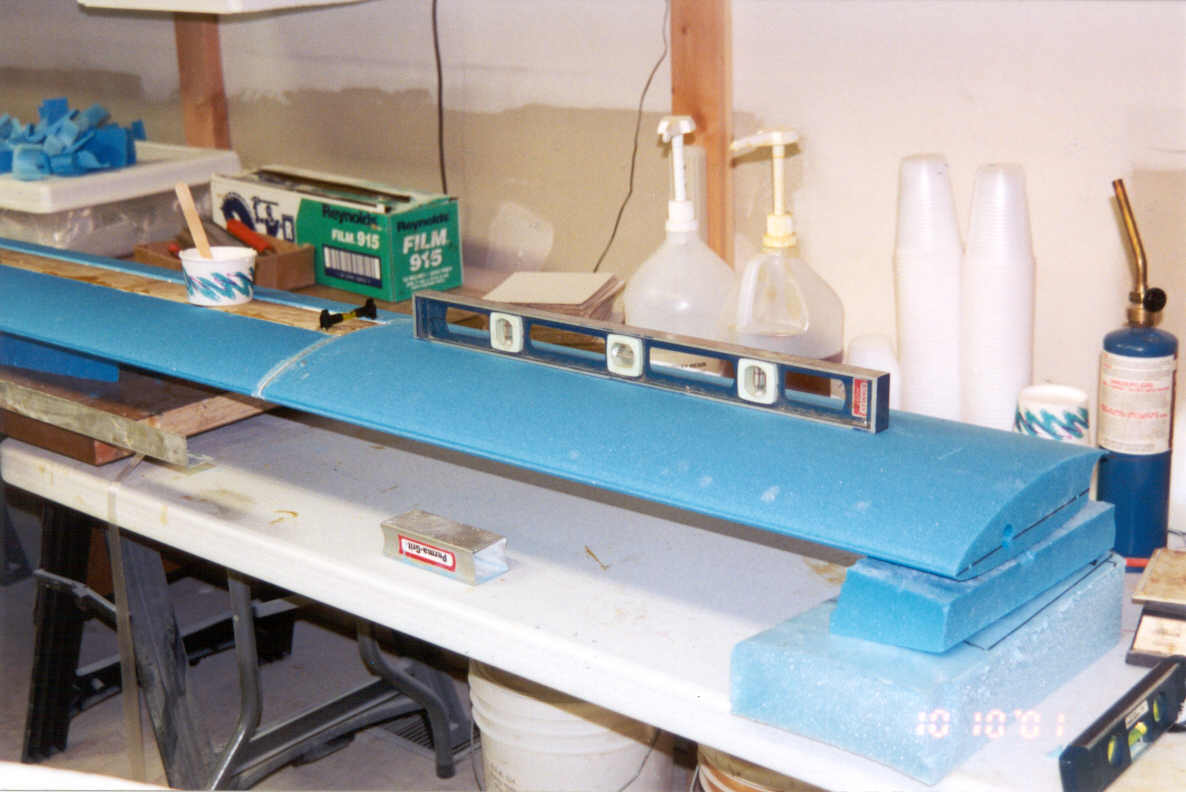

Unless they have changed the plans, the XL has foam extension that go beyond
the spar.

 <http://www.kal-soft.com/velocity/images/pic145l.jpg> Click to Enlarge

As I recall, they were 33" long on each side.  The 173 has the same wing and
canard as the XL, so the vide is accurate.

The cores should have come with the wing kit.

Andy

-----Original Message-----
From: reflector-bounces at tvbf.org [mailto:reflector-bounces at tvbf.org] On
Behalf Of Jack Prock
Sent: Thursday, September 28, 2006 12:08 AM
To: Velocity Reflector
Subject: REFLECTOR: XL canard


Hi,

I am in the process of building the XL canard and the manual calls for an
"Outboard Fullsize Core"
which I may be missing. Is this part of the XL kit? The construction tapes
show the guy attaching
some outboard foam cores that I don't have, but he is building a 173, so I'm
not sure it that applies.

The manual on page 3-7 calls for the outboard fullsize core, so what's  the
scoop, am I missing
this part? I do have fiberglass wing ends that came with the kit... is there
something else?

Thanks,

 Jack Prock
