REFLECTOR: Threaded hole strength

[Richard Riley]

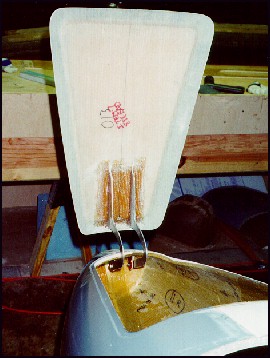

Berkut uses a similar system - see http://www.berkut13.com/bag1.jpg

We generally use a single camloc on the aft lip.  If it's left unfastened,
the door will open a half inch or so in flight at low speed, and lay
totally flat at higher speed.


At 08:13 AM 7/22/05, you wrote:
>Greg,
>Sorry for the confusion. My RBH does now open from the rear similar to the
>bonnet on my e-type Jaguar. the photo was only to show how large the hatch
>is this was a photo taken during construction. Opening from the front
>would have been better for access but a possible hazard in flight. The
>hatch cover pivots on an axle such that the front goes down as the rear
>comes up.I made a lip by having the hatch in place and putting a layer of
>glass over the front edge. I will get some pictures and post them. The
>hatch is fixed pined to the pivot axle and has spring loaded laches at the
>rear. The spring latches are operater by cables run thru glassed tubes
>under the cover to a ring which can be reached and pulled from the nose
>wheel opening. I also have a safety strap which is attached and connected
>under the instrument panel. I was not real sure about the plastic latches
>or what the hatch would do if it opened. Still not sure but don't want to
>do that test.
>--
>Jack Sheehan
>Executive Director
>National Consortium for Aviation Mobility (NCAM)
>Visit the following sites
>http://www.ncam-sats.org, http://www.sats2005.com, http://sats.nasa.gov
